Ultimate Access V Electric Projection Screen

The Ultimate Access V features a tab-tensioned, ceiling-recessed screen with complete concealment and a sleek design, free of visible fasteners.

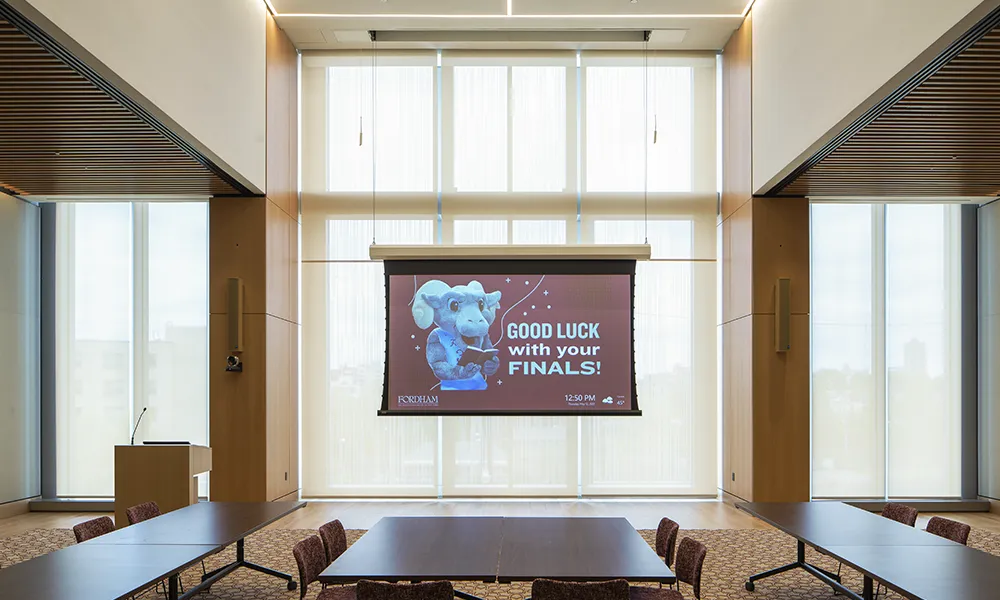

The Ultimate Access V projection screen features a sleek design with no exposed fasteners, ideal for mid-sized training rooms, boardrooms, home theaters, and universities. Its case includes a motorized trap door for smooth screen descent and a ceiling closure panel that fully conceals the screen. The tab-tensioned design ensures a flat viewing surface for superior image quality, with RF-welded tabs preventing separation and stickiness. A bottom access panel simplifies maintenance, while early case installation prevents damage and allows the screen to be added later.

5-Year Warranty* Ready to purchase

Product Specs

Now available in new 21:9 format.

Case dimensions: 9-7/8" high x 8" deep (25 cm x 20 cm), with trim flange.

Built-in controls and mounting brackets may increase case dimensions. See Submittal for details.

Maximum image width up to 12' (366 cm) wide, depending on surface selection. Custom sizes available.

Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

Adjustable or removable hoisting brackets included for easy lifting during installation.

Sliding brackets on top allow for mounting adjustments; inside brackets accommodate different screen sizes.

Bottom access panel door is detachable or hangs with a 'T' bracket for easy maintenance.

Ceiling closure panel can be finished by a contractor to match the ceiling.

RF-welded tabs create a durable seal, eliminating separation and stickiness

Quick-connect wiring allows early case installation, with the screen added later.

Includes a 110V three-position switch; quiet low-voltage motors and 220V options available.

Low voltage video interface or controls can be integrated for below-ceiling access.

White case standard, black available upon request.

UL Listed.

Viewing Surfaces Available:

TecVision XH700X Premium Contrast Grey

TecVision XH800X ALR

TecVision XH900X ALR

TecVision MS1000X ALR

TecVision CS1100X ALR

TecVision XH1200X Premium Contrast Grey

TecVision XT1000X White

TecVision XT1100X White

TecVision XT1300X White

TecVision XT1600X White

Matt White XT1000VB

Grey XH600V

CineFlex CH1200V

CineFlex White XT700V

Supporting Documents

Click the and icons to navigate the folders. Click the document name to download.

CSI 3-Part Specifications

Ultimate Access V - Submittal

BIM Object

Care and Maintenance Instructions

Product Page

Warranty

BIM Support

Sizes, Part Numbers & Prices

View all available sizes and surfaces on one page

Surface Material: Image Format: Diagonal (Image area): Voltage: Motor Options: Unit of measure:

Imperial (USA)

Metric

Part number:	143025
Surface material:	Matt White XT1000VB
Image Format:	16:10
Diagonal size:	94"
Image/Viewable area:	50" x 80"
Case length:	102 1/8"
Product weight:	103 pounds
Shipping weight:	128 pounds
U.S. Retail Price:	$7908

Draper manufactures custom size screens to meet your specification. Virtually any size within the maximum shown for a given model is available. Please call for pricing on special sizes.
