Dual Roller Motorized FlexShade

Privacy and View with Indoor Dual Roller Motorized Shades

Vertically stack two shades or a shade and projection screen in a single headbox with the Dual Roller Motorized FlexShade. The versatility in design applications of the Dual Roller Motorized FlexShade make it useful in a variety of settings.

Hardware Options

Fabric Options

Large Format Printing

Warranty Ready to purchase

Product Specs

CHILD SAFETY NOTICE: This product complies with ANSI/WCMA A100.1-2022-Child Safety Standard and has been Certified Best for Kids™ by the Window Covering Safety Council.

Sizes available up to 8' wide (244 cm), depending on fabric selection.

Combine glare control fabric with room darkening or LightBloc FlexShade (side-and-sill channel) for complete blackout.

Mounting brackets (standard). Optional fascia with endcaps, or headbox with closure.

Hardware finish choices: clear anodized (standard), black, white, ivory, or charcoal bronze. Custom powder coat colors available.

Dual roller pocket headbox is white (standard) at the ceiling line. Headbox can be installed in ceiling in advance of shades.

Dual Roller Extruded Aluminum Headbox available for wider widths. Three-piece headbox can be ordered assembled or broken down.

Accommodates Motorized FlexShade, Battery-Operated FlexShade, and 24V FlexShade.

Shades may be coupled, minimizing wiring and use of motors.

All Draper motorization and control options are available for dual roller shades.

Product designed for interior use.

UL Listed.

ANSI/WCMA A100.1-2022 Child Safety Standard

Effective June 1, 2024, in compliance with the updated ANSI/WCMA A100.1-2022 child safety standard, all Draper window shades operated by a bead chain will be furnished with a tensioned hold-down device that is permanently attached and partially disables the product if not installed correctly. This hold-down should be installed with tension on the chain.

All bead chain operated window shades will include:

Permanently installed spring-loaded tensioned hold-down device
Approved permanent warning label attached
Approved mechanical fasteners for the tension device included. Screws provided are not suitable for all mounting surfaces. The installer is responsible for secure mounting using appropriate hardware for the site conditions. Consult with contractors and builders as needed.

If the tension device is not installed with appropriate tension on the bead chain, the shade will be rendered partially inoperable. If installed properly, the tension device will prevent the creation of a hazardous loop and will maintain tension on the bead chain.

Learn more about the new child safety standard

At the link below, you can see more information about the new child safety standard, mounting methods for the tensioned hold-down device, alternatives to bead chain products, and more.

Click here for more information

Supporting Documents

Click the and icons to navigate the folders. Click the document name to download.

Dual Roller Motorized FlexShade

CSI 3-Part Specifications-Dual Roller Motorized

Cleaning: Interior Shades

TB2024-3-SH_Best-for-Kids

Warranty

Part Numbers

Videos

Project Profile Window Shade Solutions: Denver Water

Denver Water Treatment - Denver, CO MOTORIZED FLEXSHADE SINGLE & DUAL ROLLER WINDOW SHADES featuring Mermet E-Screen White/Pearl Fabric 1% Openness DEALER: Royal Textile Products | Commercial Window Treatment PHOTOGRAPHY: Brett Drury - Architectural-Photography.com

How Draper Makes a Shade

Go behind the scenes to see how Draper custom creates each new window shade. Our integrated process means you get a higher quality product faster.

Case Studies

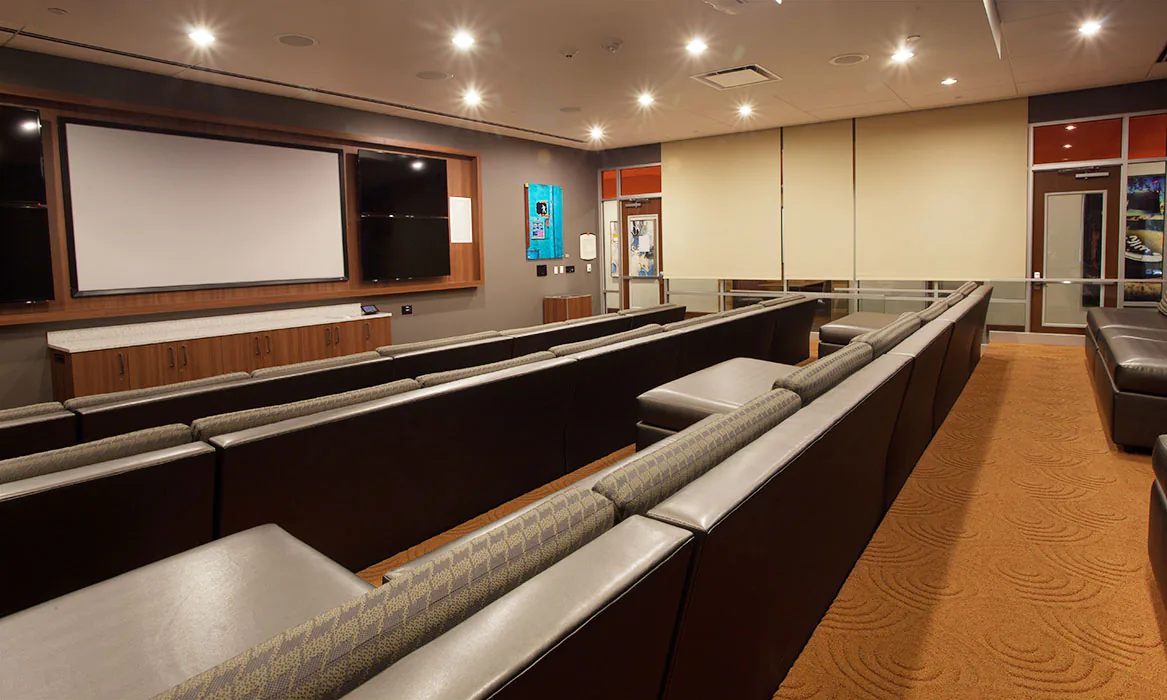

Callaway House Residences - Austin, TX

Clarion projection screen, Clutch-Operated FlexShade XD window shades, and Dual Roller Motorized FlexShade window shades installed at Callaway House Residences, Austin, TX.

Cavasson Offices, East Building – Scottsdale, AZ

FlexShade NEXD (1600 ttl) & Dual Roller Motorized FlexShade Window Shades with SheerWeave 2580, installed at the Cavasson East Building in Scottsdale, AZ.

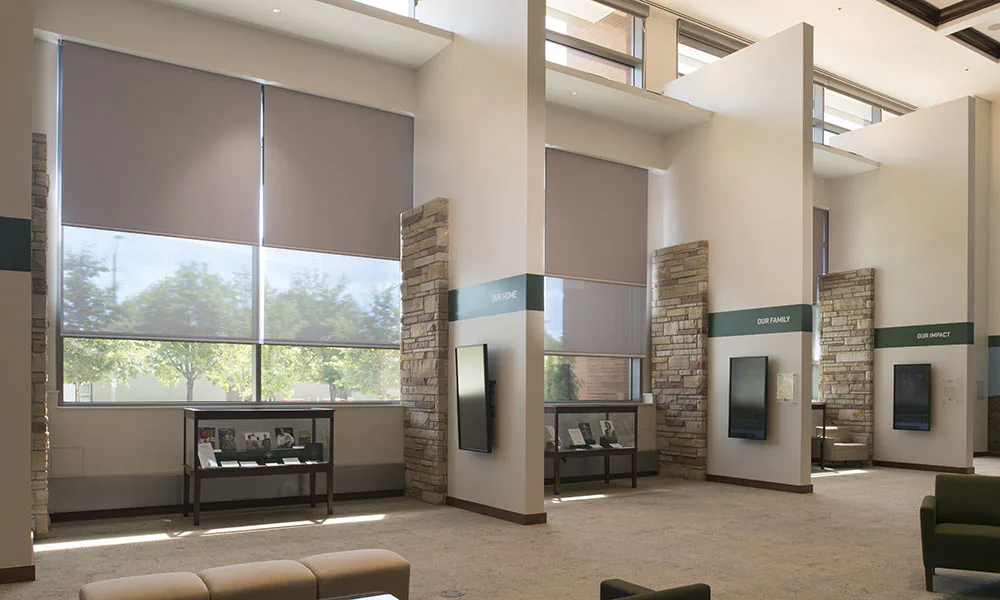

Colorado State University Alumni Center - Fort Collins, CO

Dual Roller Shades in the Smith Alumni Center at Colorado State University featuring Phifer SheerWeave SW4400 fabric.

DePauw University - Greencastle, IN

Access V, Access E, Ultimate Folding Screen, Targa, and Luma projection screens, Micro Projector Lift, and Dual Roller Motorized FlexShade window shades installed at DePauw University, Greencastle, IN.

Kettering College – Kettering, OH

Shade Solutions include the Intelliflex I/O System, Dual Motorized FlexShade Window Shades with Phifer SheerWeave 7500 Dune & Mermet E Screen 3% White. AV Solutions include the Premier XL - 189" DIA. With CineFlex CH1200V Surface and a StyleLine - 189" DIA. with OptiFlex Matt White XT1000VB, all installed at Kettering College

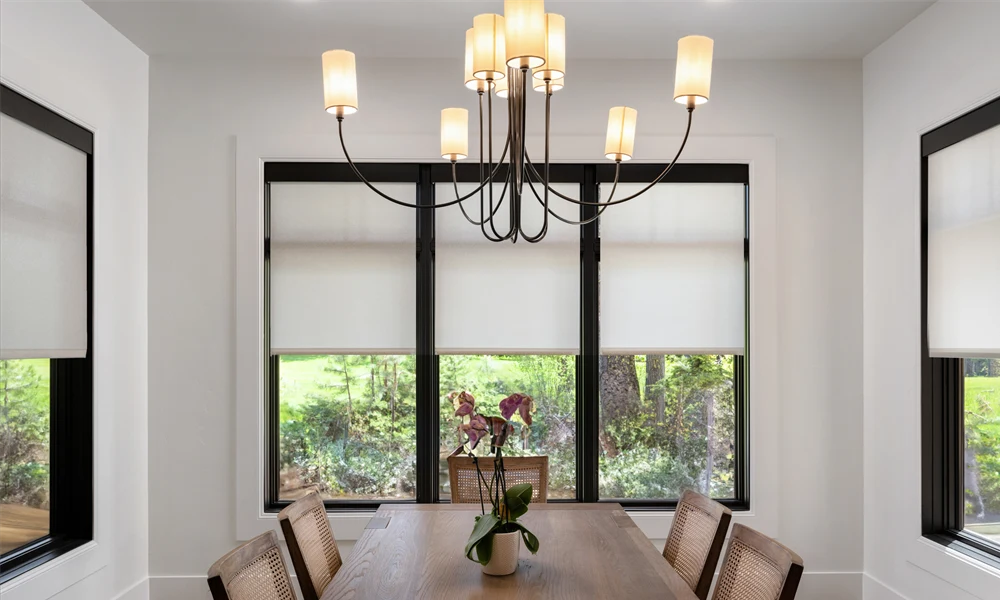

Private Residence – McCall, ID

FlexShade Battery Zigbee Motorized & Dual Roller Motorized FlexShade with Phifer® SheerWeave® 7250 Oyster & Opaque 7200 0% Oyster installed in a private residence based in McCall, ID.

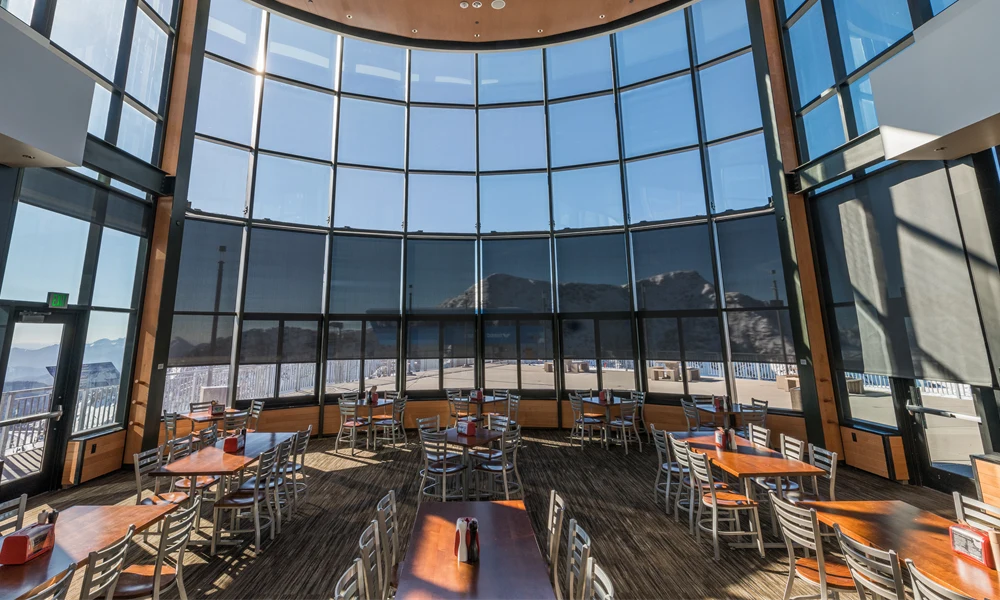

Snowbird Lodge & Ski Resort – Salt Lake City, UT

Motorized FlexShade Window Shades with Mermet E-Screen Charcoal/Grey 1% Openness installed at the Snowbird Lodge & Ski Resort

WOSU Public Media Headquarters - Columbus, OH

Dual Roller and Single Roller Motorized FlexShade and Manual FlexShade at WOSU Public Media Headquarters, Columbus, OH.

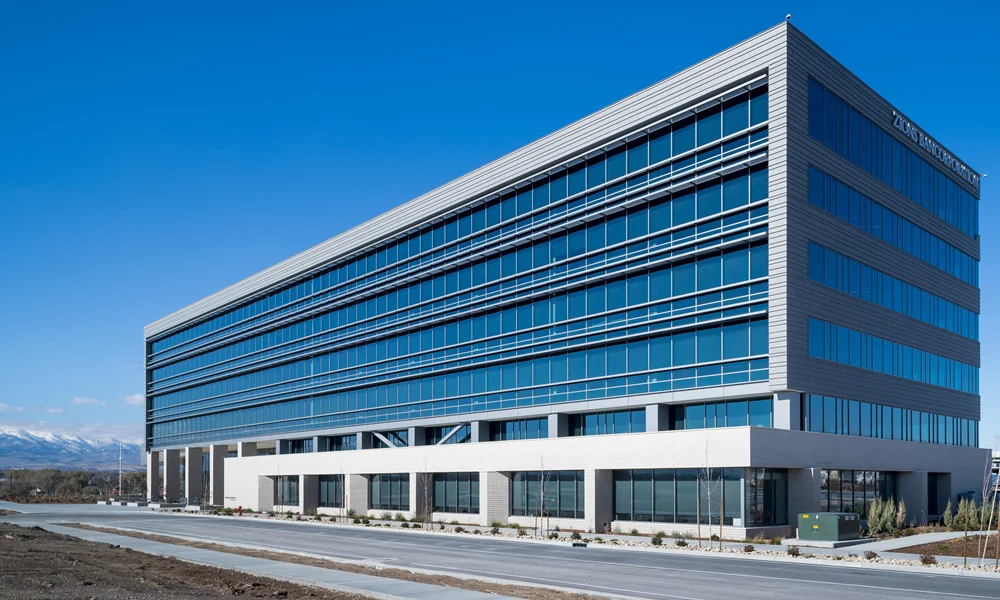

Zions Bank – Midvale, UT

Coupled Motorized FlexShade Window Shades, Dual Roller FlexShade , IntelliFlex I/O Controls w/ Sun Tracking with Phifer SheerWeave 2400 3% Charcoal/Grey & 7500 Opaque Orient/Orient, all installed in Zions Bank in Midvale, UT

Related Motors & Accessories

Motors and Controls for this shade.
