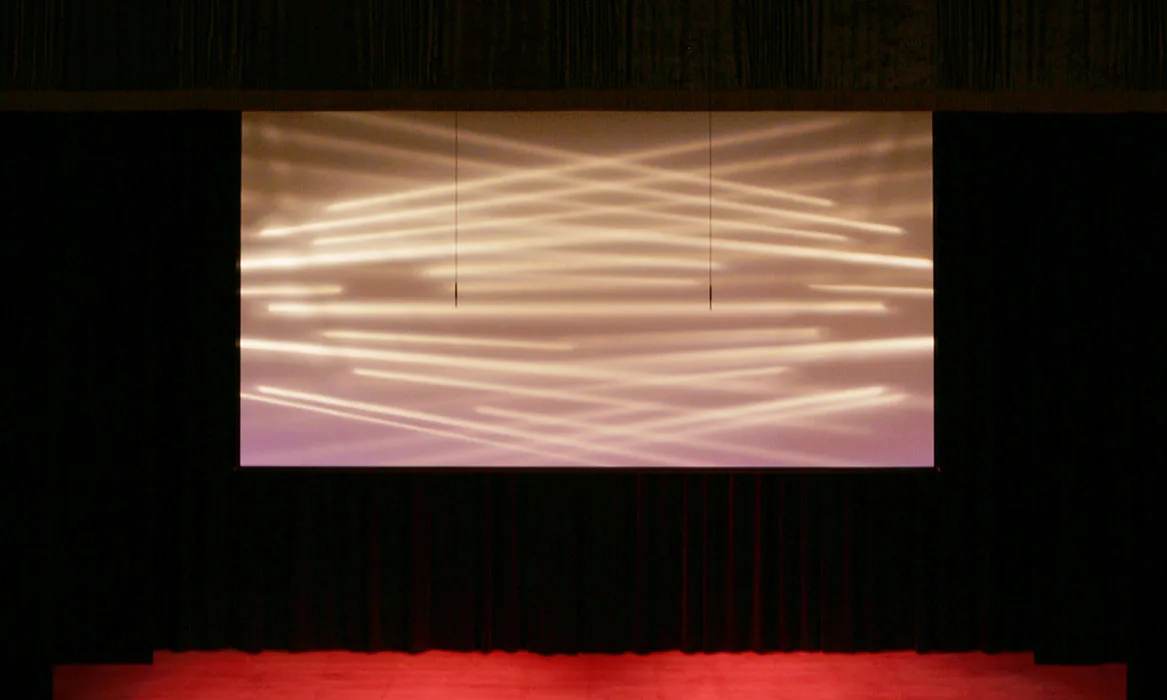

Paragon E Electric Projection Screen

The heavy-duty and durable Paragon E Electric Projection Screen is ideal for large venues like auditoriums and lecture halls.

The heavy-duty design of the wall- or ceiling-mounted Paragon E makes it ideal for auditoriums, lecture halls, or wherever a very large screen is required. Housed in an aluminum case that can be suspended anywhere. A bottom closure panel provides easy access for service or maintenance. The insulated motor provides a smooth, quiet operation. This free-hanging screen maintains flatness due to the weight of the viewing surface and bottom dowel.

Patent Information

5-Year Warranty* Ready to purchase

Product Specs

Case dimensions 13-1/4" high x 12" deep (34 cm x 30 cm).

Maximum image width up to 28’ (853 cm) wide, depending on surface selection.

NTSC, HDTV and 16:10 format have image area framed with black on all fours sides. Black side borders are available on request for AV format Screens. Additional drop above image available, specify color.

Includes extruded aluminum case with white finish. Optional wall-mounting brackets and ceiling trim flange kit.

Bottom closure panel provides easy access for service or maintenance.

Includes a 110V, 3-position switch (standard). Low-voltage modules and controls or 220V options are available.

Custom sizes available.

UL Listed.

Viewing Surfaces Available:

Matt White XT1000E

Chroma Key Green

Supporting Documents

Click the and icons to navigate the folders. Click the document name to download.

CSI 3-Part Specifications

Paragon E Submittal

BIM Object

Care and Maintenance Instructions

Product Page

Warranty

BIM Support

Sizes, Part Numbers & Prices

View all available sizes and surfaces on one page

Surface Material: Image Format: Diagonal (Image area): Voltage: Unit of measure:

Imperial (USA)

Metric

Part number:	114228
Surface material:	Matt White XT1000E
Image Format:	16:10
Diagonal size:	278"
Image/Viewable area:	147 1/2" x 236"
Overall size:	152 1/2" x 240"
Case length:	250"
Product weight:	440 pounds
Shipping weight:	775 pounds
U.S. Retail Price:	$10104

Draper manufactures custom size screens to meet your specification. Virtually any size within the maximum shown for a given model is available. Please call for pricing on special sizes including the new 21:9 format.
