Nocturne+ E Electric Projection Screen

Nocturne+ E electric projection screen combines a weather resistant design with easy installation, making it ideal for outdoor entertainment spaces.

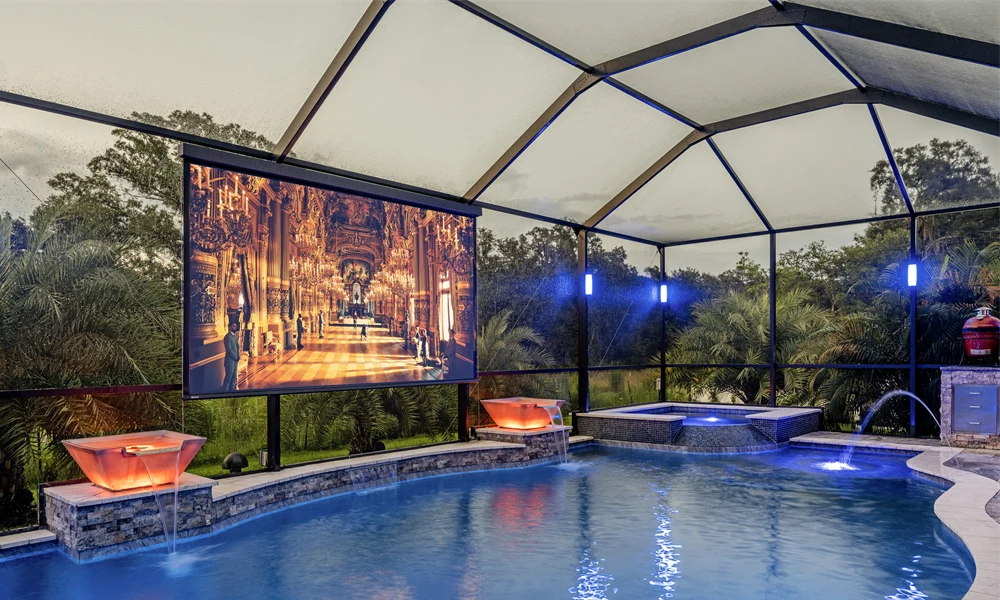

Take your entertainment outdoors with the easy-to-install Nocturne+ E electric projection screen. Designed with customer input, it’s perfect for patios, pool decks, or other outdoor venues. Floating wall brackets securely grip the screen along the back of the case, simplifying installation. With a range of screen sizes and a weather- and insect-resistant headbox, the Nocturne+ E transforms any space into the ultimate outdoor entertainment destination.

5-Year Warranty* Ready to purchase

Product Specs

Square and curved headbox dimensions: 3-5/8” deep x 3-5/8” high (9.21 cm x 9.21 cm).

Maximum image width up to 132" (335 cm) wide, depending on surface selection.

Ships with floating wall brackets; ceiling brackets available upon request.

Hardware finishes include silver, white, black, ivory, or charcoal bronze, with custom powder coat colors available.

Insect- and weather-resistant aluminum headbox with a built-in hinge for easy installation and maintenance.

Cable guides secure the hem bar in windy conditions (fabric not secured).

Weighted hem bar stabilizes the viewing surface during operation.

Retract the projection screen in windy conditions.

Remote control options available.

Custom sizes available.

Viewing Surfaces Available:

Matt White XT1000E

Contrast Grey XH800E

ClearSound White Weave XT900E

Supporting Documents

Click the and icons to navigate the folders. Click the document name to download.

Submittal - Nocturne+ E

Care and Maintenance Instructions

Product Page

Warranty

Sizes, Part Numbers & Prices

View all available sizes and surfaces on one page

Surface Material: Image Format: Diagonal (Image area): Voltage: Unit of measure:

Imperial (USA)

Metric

Part number:	138019
Surface material:	Matt White XT1000E
Image Format:	16:10
Diagonal size:	94"
Image/Viewable area:	50" x 80"
Overall size:	62" x 83 1/2"
Case length:	85 5/8"
Product weight:	38 pounds
Shipping weight:	44 pounds
U.S. Retail Price:	$2038

Draper manufactures custom size screens to meet your specification. Virtually any size within the maximum shown for a given model is available. Please call for pricing on special sizes.
